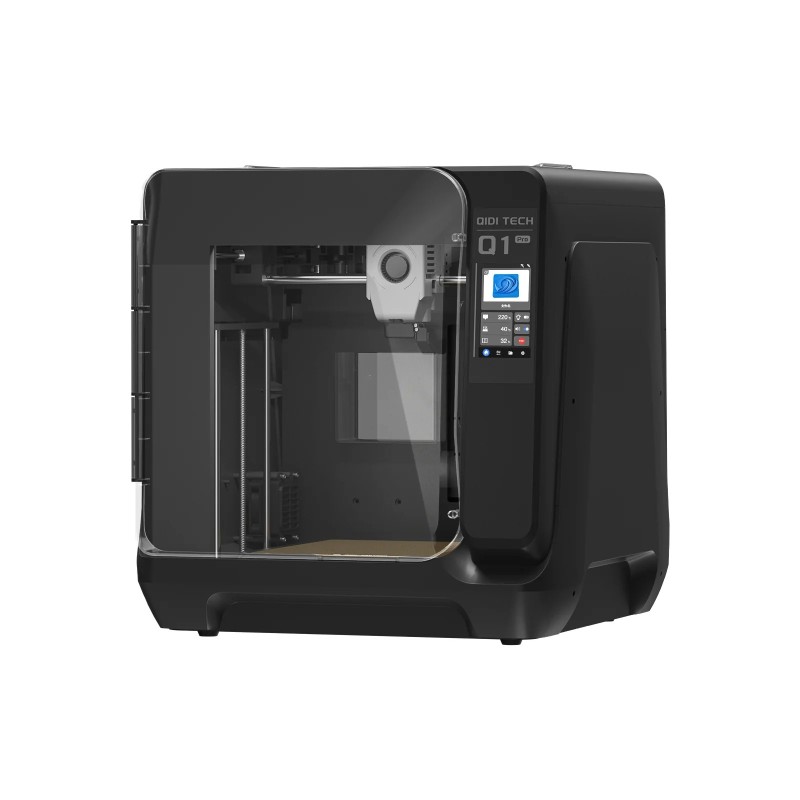

Qidi Tech Q1 Pro 3D Printer

The Q1 Pro from Qidi Tech is a stable CoreXY FDM 3D printer with a closed build space and a 60 °C chamber heater for a consistent ambient temperature and better printing results.

Robust construction for greater reliability

The robustly built Q1 Pro features an all-metal frame and is reinforced with a metal base for greater stability.

Stability and precision despite high speed

In order to ensure the stability and precision of the Q1 Pro, emphasis was placed on other features in addition to the robust construction:

► Q1 Pro 's lightweight CoreXY structure supports its ultra-fast acceleration;

► SpreadCycle technology ensures less vibration development;

► The intelligent TMC2240 silent driver minimises noise, guarantees safe operation and at the same time reduces power consumption and heat generation.

Optimal temperature control through active chamber heating

With a maximum temperature of 60 °C, warping is reduced, the adhesion of the layers is improved and the print quality is generally increased.

Tip: The active chamber heating is particularly suitable for printing ABS, PA, PC, etc.

Innovative tri-metal hotend and 350°C printing temperature for more possibilities

The Q1 Pro is equipped with a newly developed tri-metal hotend with a lock-proof bimetal nozzle.

The 3D printer is designed for a maximum printing temperature of 350°C in order to be able to print models with better mechanical properties, including the following materials: PAHT-CF, PET-CF, PA12-CF, ABS-GF25, PC/ ABS-FR etc.

Automatic calibration for a quick start

Included:

• Automatic bed levelling with two sensors for a perfect first layer with every print,
• Automatic calculation of the Z offset without levelling paper.

Other features:

• Klipper 64-bit processors,
• 32G-EMMC for large storage capacity,
• 150M WiFi6 for high-speed data transport,
• Two independent Z motors without belts and with automatic tilt levelling,
• Comprehensive filament detection system with filament runout detection and filament tangle detection,
• 1080 pixel camera for convenient remote monitoring or creating beautiful time lapses,
• Remote control via QIDI app.

Included:

• 1 x Qidi Tech Q1 Pro
• 1 x Filament Spool Holder
• 1 x Holder Cover
• 1 x Filament Extension Stand
• 1 x Power Cord
• 1 x Spatula
• 1 x 7mm Wrench
• 1 x Flat Head Screwdriver
• 1 x Allen key set (H1.5, H2, H2.5)
• 1 x 0.4mm Nozzle Cleaning Tool
• 1 x USB 2.0 Flash Drive
• 1 x Spare Parts Set
• 1 x Q1 Pro Quick Start Guide

Technical specifications:
